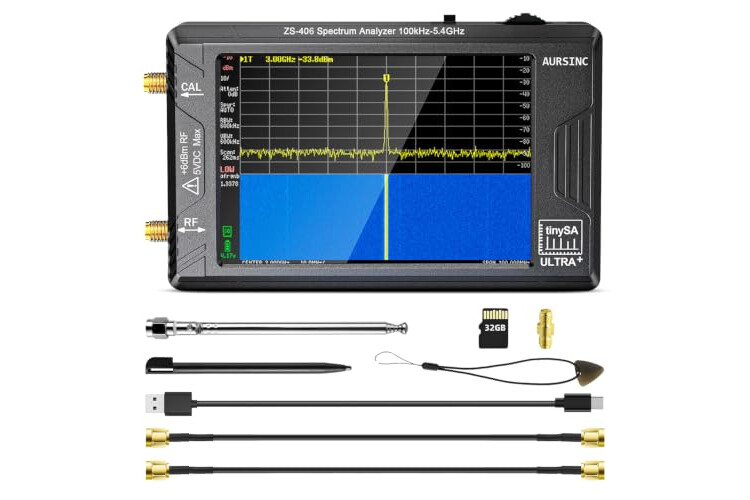

AURSINC TinySA Ultra+ ZS406 Spectrum Analyzer, 4.0" Touchscreen 100kHz-5.4GHz Handheld Frequency Analyzer with 32Gb Card, 2-in-1 Signal Generator MF/HF/VHF UHF Input, HW V0.4.6, 2025 Upgraded

$185.99 ( 0.85092074 BCH )

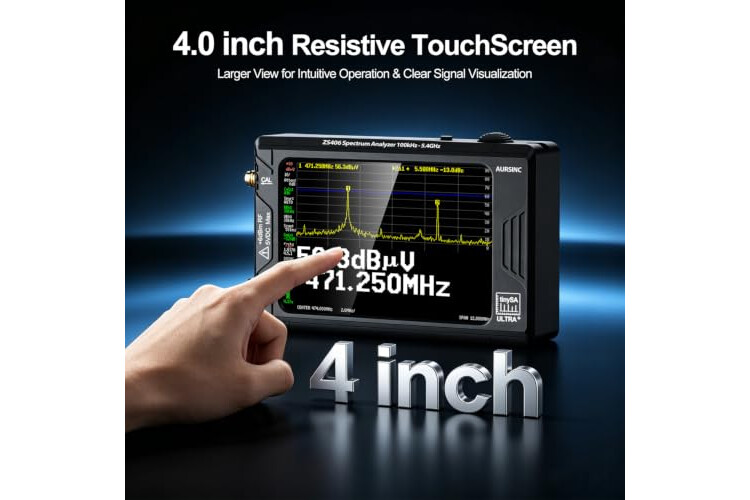

Upgraded TinySA Ultra+ ZS406: Built on the latest HW V0.4.6, the AURSINC TinySA Ultra+ ZS406 features a 4.0 inch 480*320 touchscreen display for intuitive operation. It comes with a pre-installed 32GB micro SD card for convenient on-site data storage and sharing, and a built-in 5000mAh rechargeable battery that delivers at least 3 hours of continuous operation on a full charge

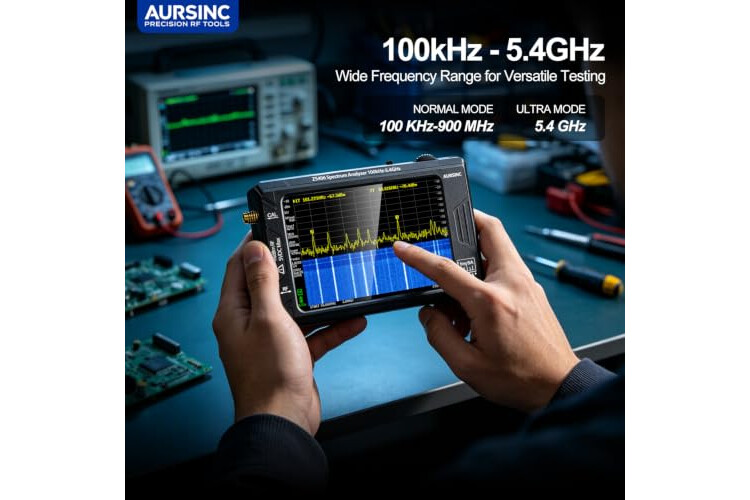

Wide Frequency Range & Adjustable RBW: Covers a measurement range of 100kHz to 5.4GHz, with Ultra mode extending up to 6GHz. Switchable resolution bandwidth from 200Hz to 850kHz enables fast and accurate measurements; the 200Hz minimum RBW clearly separates adjacent signals and supports SSB two-tone intermodulation testing. It includes a 0–31dB input step attenuator and displays up to 450 points for gapless full-band coverage

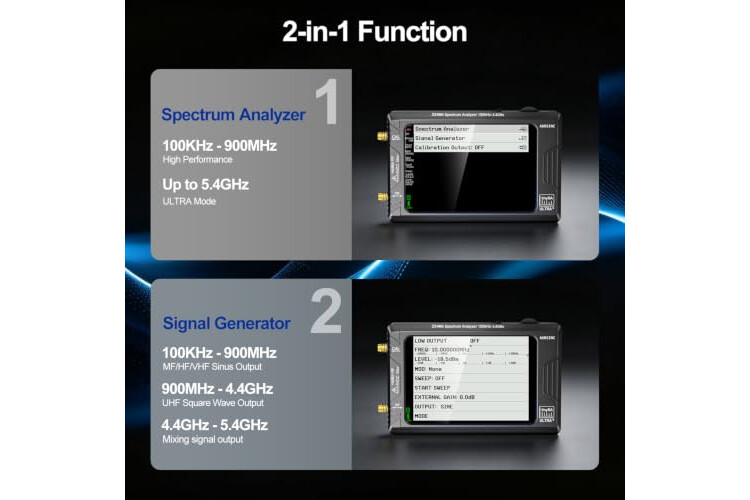

2-in-1 Analyzer & Signal Generator: Doubles as a signal generator when not used for spectrum analysis. It outputs MF/HF/VHF sine waves from 100kHz to 900MHz, UHF square waves from 800MHz to 4.4GHz, and mix...

Quantity

Category: Others

Power Source	Battery Powered
Compatible Devices	Antenna with SMA connector, SMA cables, USB Type-C enabled devices, Computers with USB port
Item Weight	370 Grams
Item Dimensions	4.61 x 2.83 x 0.91 inches
Brand Name	AURSINC
Model	TinySA Ultra+ ZS406
Warranty Description	3 year warranty
Manufacturer	AURSINC
Part Number	ULTRA TinySA 2022117
Included Components	tinysa ultra+ zs406 spectrum analyzer
Unit Count	1.0 Count
