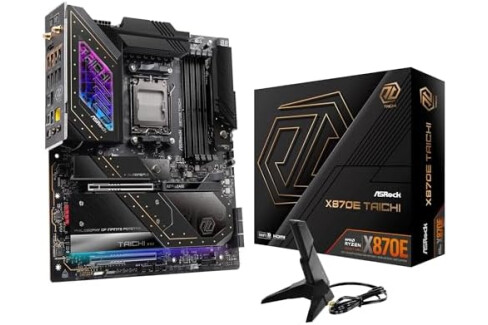

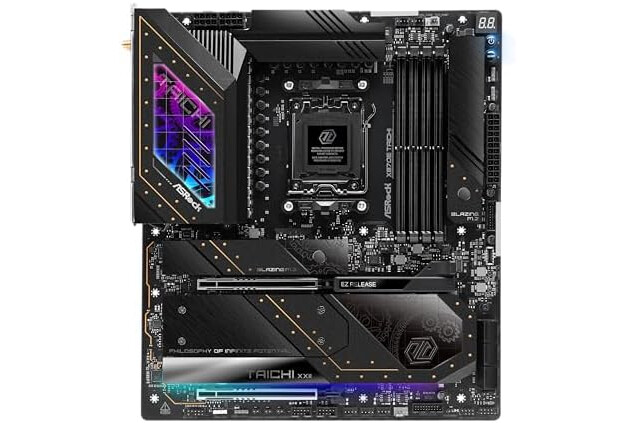

The current flagship model announced from ASRock's X870E line-up for Ryzen 9000 is the ASRock X870E Taichi. ASRock is advertising a large 27-phase power delivery through 110A SPS, suggesting this board is designed for overclockers and all-around power users. Two PCIe 5.0 x16 slots (operating in either x16/x0 or x8/x8) provide high-speed bandwidth for cutting-edge graphics cards and other devices. Meanwhile, ASRock has gone with 4 DIMM slots on this board, so system builders will be able to max out the board's memory capacity at the cost of bandwidth.
| Processor Socket | Socket AM5 |
|---|---|
| Compatible Devices | Personal Computer |
| RAM Memory Technology | DDR5 |
| Compatible Processors | AMD Ryzen 7000 Series Processors, AMD Ryzen 8000 Series Processors, AMD Ryzen 9000 Series Processors |
| Chipset Type | AMD X870 |
| Memory Clock Speed | 8200 MHz |
| Platform | Windows 10, Windows 11 |
| CPU Model | Ryzen 9 |
| Memory Storage Capacity | 256 GB |
| RAM Memory Maximum Size | 256 GB |
| Main Power Connector Type | 24-Pin |
| Graphics Card Interface | Integrated, PCI Express 4.0 |
| Memory Slots Available | 4 |
| Number of Ports | 24 |
| S/PDIF Connector Type | Optical |
| System Bus Standard Supported | SATA 3 |
| Total SATA Ports | 6 |
| Total Usb Ports | 15 |
| Number of Ethernet Ports | 1 |
| Total Number of HDMI Ports | 1 |
| Total PCIe Ports | 2 |
| Brand | ASRock |
| Model Name | X870E TAICHI |
| Model Number | X870E TAICHI |
| Manufacturer | ASRock |
| Global Trade Identification Number | 04710483947421 |
| Mfr Part Number | 90-MXBP90-A0UAYZ |
| Item Weight | 4.5 Pounds |
| Warranty Description | 1 year |
