Features:

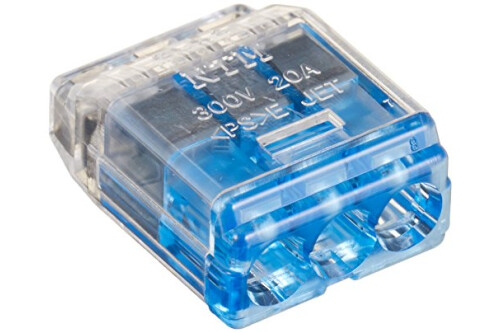

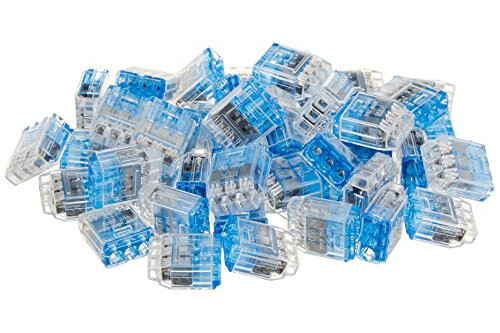

Unique 2-point contact spring construction.
Transparent cover allows visual identification of wiring
This product is compatible with JIS C2815 (plug type electrical connector for indoor wiring). (Certified inspection agencies: PS> E JET) [Uses]
For wiring loose wires. Specifications:
Number of poles: 3
Color: Blue transparent
Applicable wire (copper wire) single wire: φ0.06 - 0.08 inch (1.6 - 2.0 mm)
Wire Hugging Range: Single wire: φ0.06 - 0.08 inch (1.6 - 2.0 mm)
Number of Insertion Lines: 3
Rated Current: 20A
Wire wrapping range: Stranded wire ([[[[MM2]]): Not compatible with stranded wires.
Length: 0.8 inches (20.5 mm)
Compatible wire (stranded wire) (m [[M2]): Not compatible with stranded wires.
Compatible wire (single wire): φ0.06 - 0.08 inch (1.6 - 2.0 mm)
Width: 0.6 inches (16.2 mm)
Height: 0.4 inches (9.1 mm)
Number of Wires: 3
Rated Current: 20A
Rated Voltage: 300 V
Maximum Operating Temperature: 176°F (80°C)
Compatible wire (copper/single wire): φ0.06 inch (1.6 mm), φ0.08 inch (2.0 mm) [Material/finish]
Spring: Stainless steel (SUS303)
Conductive Plate: Oxygen free copper (C1022) / Tin plating
Housing: Polycarbonate (PC) [Set contents] [Caution]
Strip wire housing to strip gauge.
Use bent wires straight.
Insert the wire straight and deep, and check by visualization.
Insufficient insertion may cause overheating.
Please do not bend it near the wire outlet on the connector when you put it in the box
