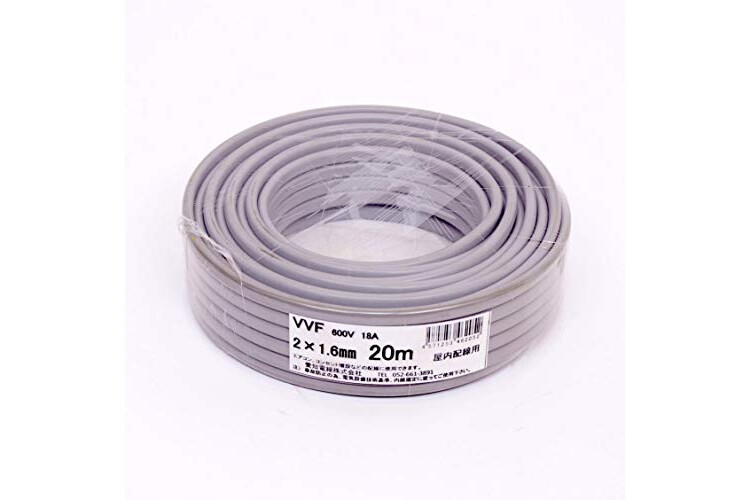

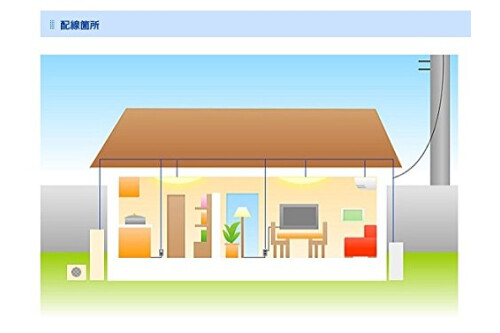

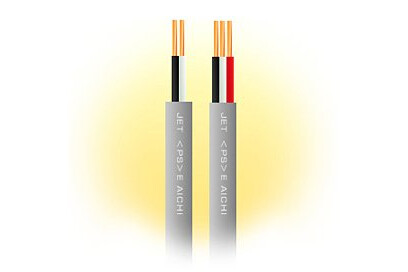

Manufacturer: Aichi Electric Wire; Model Number: VVF2 x 1.6M20; Product Name: VVF Cable 2 Cores; Wire Lead Number x Conductor Diameter: 0.08 inches (2 x 1.6 mm); Insulation Thickness: 0.03 inches (0.8 mm); Sheath Thickness: 0.06 inches (1.5 mm); Finished Outer Diameter: 0 mm) Reference: 0 inches (6.4 inches (6.4 mm) 8.92 Test Voltage: 1500 V; Insulation Resistance (MΩ/km); Allowable Current (A): 18; Insulation Color: Black; White; Total Length: 66.6 ft (20 m); Standard: JIS C 3342 (600V vinyl insulated vinyl sheath cable (VV); Conductor: Single-wire, soft copper wire; Material: Compound (vinyl) with vinyl chloride resin. Indoor wiring. For heating and cooling wiring, various temporary construction, etc. [Note] Please use according to electrical equipment technology standards and internal wire regulations to prevent accidents.
| Manufacturer | 愛知電線 |
|---|---|
| Part Number | VVF2X1.6-20M |
| Item Weight | 1.66 Kilograms |
| Package Dimensions | 20.3 x 19.9 x 5.4 cm; 1.66 kg |
| Color | gray |
| Material | resin Polyvinyl Chloride Copper |
| Voltage | 600 Volts |
| Included Components | No |
| Batteries Required? | No |
| Date First Available | August 31, 2014 |
