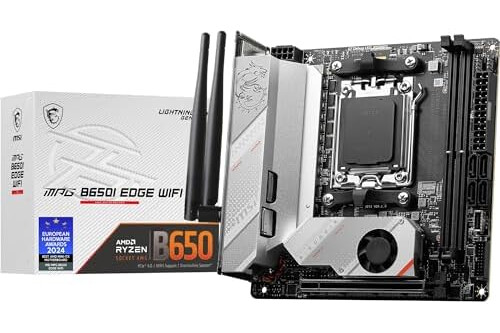

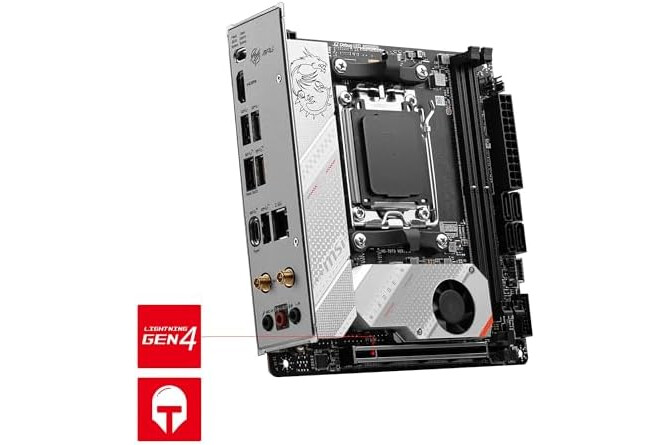

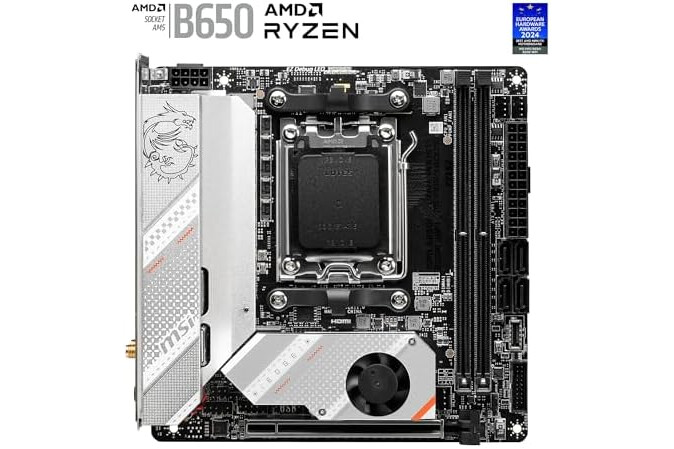

MSI MPG B650I EDGE WIFI Motherboard, Mini-ITX - Supports AMD Ryzen 9000 Series CPUs, AM5-8 phases direct CPU power 80A VRM, DDR5 Memory Boost 6600+MHz/OC, 1 x PCIe 4.0 x16, 2 x M.2 Gen4, Wi-Fi 6E

  • POWERFUL VRM, Ryzen 9000 READY - The MPG B650I EDGE WIFI employs an direct 8+2 phase VRM with 80A Smart Power Stage for the AMD B650 chipset (AM5, Ryzen 9000 / 8000 / 7000 ready); Core Boost architecture supports multi-core overclocking

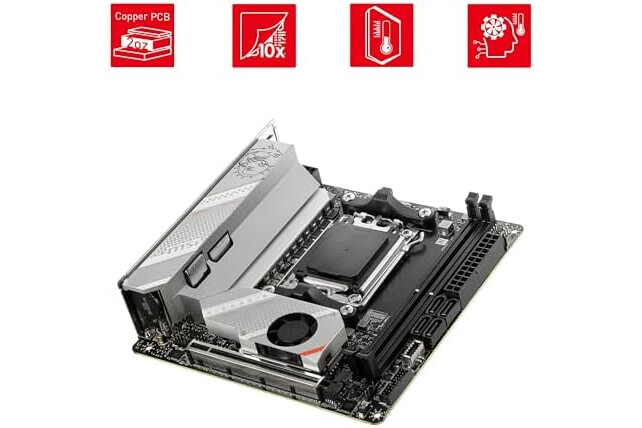

  • INTEGRATED COOLING - VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Additional cooling includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 10-layer PCB with 2 oz. thickened copper

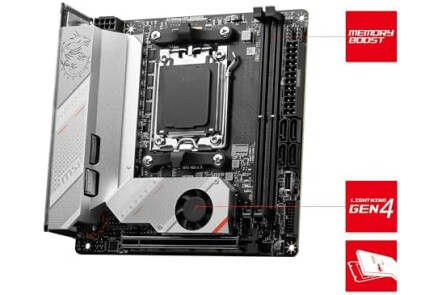

  • DDR5 MEMORY, PCI-E 4.0 x16 SLOT - 2 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 6600+ MHz); 1 x PCIe 4.0 x16 Steel Armor slot (64GB/s) supports graphics card
  • DUAL M.2 CONNECTORS - Premium storage options consist of 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr to prevent SSD thermal throttling
  • WI-FI 6E CONNECTIVITY - Network hardware includes Wi-Fi 6E with Bluetooth 5.2 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1, and 7.1 USB High Performance Audio with Audio Boost 5
Category: Others

Share:
Processor Socket Socket AM5
Compatible Devices Personal Computer
RAM Memory Technology DDR5
Compatible Processors AMD Ryzen 7000, AMD Ryzen 8000 Series
Chipset Type AMD B650
Memory Clock Speed 5600 MHz
Platform Windows 11
CPU Model Others
Memory Storage Capacity 128 GB
RAM Memory Maximum Size 64 GB
Main Power Connector Type 24-Pin
Graphics Card Interface PCI-Express x16
Available Memory Slots 2
Number of Ports 12
S/PDIF Connector Type Optical
System Bus Standard Supported PCIe 4.0
Total SATA Ports 4
USB 2.0 2
Total Usb Ports 11
Number of Ethernet Ports 1
Total HDMI Port 1
Total PCIe Ports 1
Chipset Family AMD B650
Brand Name MSI
Model Name MPG B650I EDGE WIFI
Model Number 7D73-001R
Manufacturer MSI
Global Trade Identification Number 04711377010146
Manufacturer Part Number 7D73-001R
Unit Count 1.0 count
Item Type Name Intel Motherboard
Item Weight 0.85 Kilograms
Product Warranty 3 Years
Item dimensions L x W x H 17L x 2W x 17H centimetres
