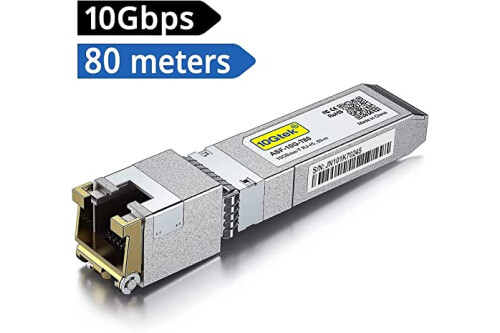

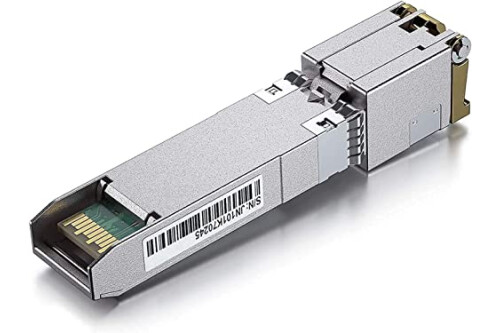

ASF-10G-T80
10Gtek's ASF-10G-T80 is a newest version copper transceiver, its biggest feature are ultra lowpower consumption and longer transmission distance (1.6W C10Gbps 30m，2.0W 110Gbps 80m). ASF-10G-T80 is a 10GBase mult-rate Copper RJ45 SFP+ transceiver, designed in with BROADCOM BCM84891 PHY chip following IEEE 802.3an/az and SFP+ MSA, supporting up to 80-meter transmission over CAT.6a or CAT.7.
Features:
10GBase-T
Data Rate: 1.25G/10G, multi-rate

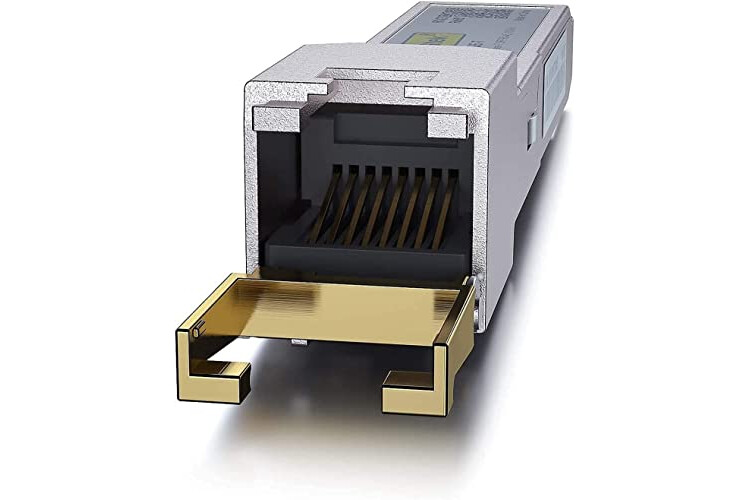

Interface: RJ-45
80 meters transmission over CAT.6a/CAT.7
Low Power Consumption (1.6W 110Gbps 30m，2.0W 110Gbps 80m)
Compliant with 10G Base-T IEEE 802.3an/az
Compliant with 1000Base-T IEEE 802.3ab
Compliant with 100Base-TX IEEE 802.3u
Temp. Range(℃): 0~60
RoHS
Applications:
10GBase-T
5GBase-T
2.5GBase-T
1000Base-T
| Connector Type | RJ45 |
|---|---|
| Cable Type | Ethernet |
| Compatible Devices | Docking Station, PC, Router, Server |
| Other Special Features of the Product | High Speed |
| Compatible Phone Models | No compatible mobile models |
| Ethernet cable category | Cat 8 |
| Connector Gender | Male-to-Male |
| Data Transfer Rate | 10 Gigabits Per Second |
| Number of Pins | 20 |
| Frequency | 10 GHz |
| Connectivity Technology | Ethernet |
| Recommended Uses For Product | Networks |
| Specification Met | RoHS |
| Indoor Outdoor Usage | Indoor |
| Colour | 4 Pack |
| Brand | 10Gtek |
| Country of Origin | China |
| Model Number | 10Gtek-SFP-RJ45-80m-4P |
| Item Length | 80 Metres |
| Manufacturer | 10Gtek |
| Product Warranty | 1 |
| Manufacturer Part Number | ASF-10G-T80 (x4)-CSC |
| Included Components | no |
| Unit Count | 4.0 count |

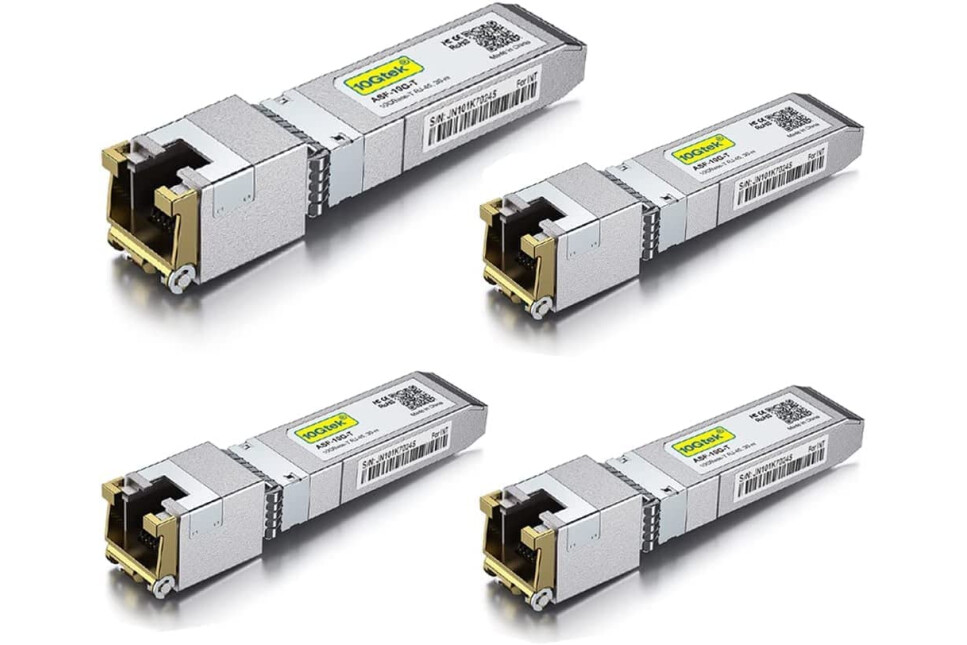

| Number of Items | 4 |
